Adwest Verified
A mechanism that turns Adwest engineering knowledge into verifiable provenance.
What Adwest Verified is
Recorded Evidence
Adwest Verified is the recorded continuity of evidence that links a physical steering box to Adwest-controlled processes, specifications, and test outcomes.
It is not a platform detail. It is not system metadata. It is evidence continuity.
Where traditional claims rely on assertion
- ▪ Reputation
- ▪ Assertion
- ▪ Institutional memory
Adwest Verified relies on recorded fact.
What Adwest Verified is not
❌ Not a marketing badge
It's a technical record that lives with your steering box for life.
❌ Not a security product
It's a way of making Adwest engineering self-verifying.
❌ Not a technology story
It's the engineering documentation that proves what was done.
What is recorded during OE-spec reconditioning
Every unit follows the same inspection: three process stages, twelve component assessments and an engineering review. The record keeps each result whichever way it goes.
Three outcomes, recorded per component
Green
Acceptable. No action required.
Amber
Discussed with the technical department before work continues.
Red
Not acceptable. The component is replaced, or the unit does not proceed.
Before the unit is opened
Visual inspection and serial capture. We record whether an original Adwest serial number is present, capture it, and photograph the unit as delivered.
Test specifications, before strip-down. Internal leak and external leak are recorded with the leaking area named. The trim value is measured against a stated tolerance: a trim value below 6 is within tolerance.
Strip-down. The unit is dismantled and every component below is assessed individually.
Twelve component assessments
- • Sector shaft
- • Cover plate
- • Piston cap
- • Piston rack
- • Input seal
- • Valve assembly
- • Rack pad and adjuster
- • Valve bearings
- • Dirt seal
- • Box housing
- • Transfer pipe
- • Drop arm assembly
Engineering review
The record closes with an overall assessment, whether technical department sign-off was required, the named reviewer, the date, and the new serial number issued to the reconditioned unit. That new serial is what links the finished box back to this record.
A real record
This is an actual Adwest Verified inspection, dated 2 March 2026. Customer details and serial numbers are masked. Nothing else has been changed.

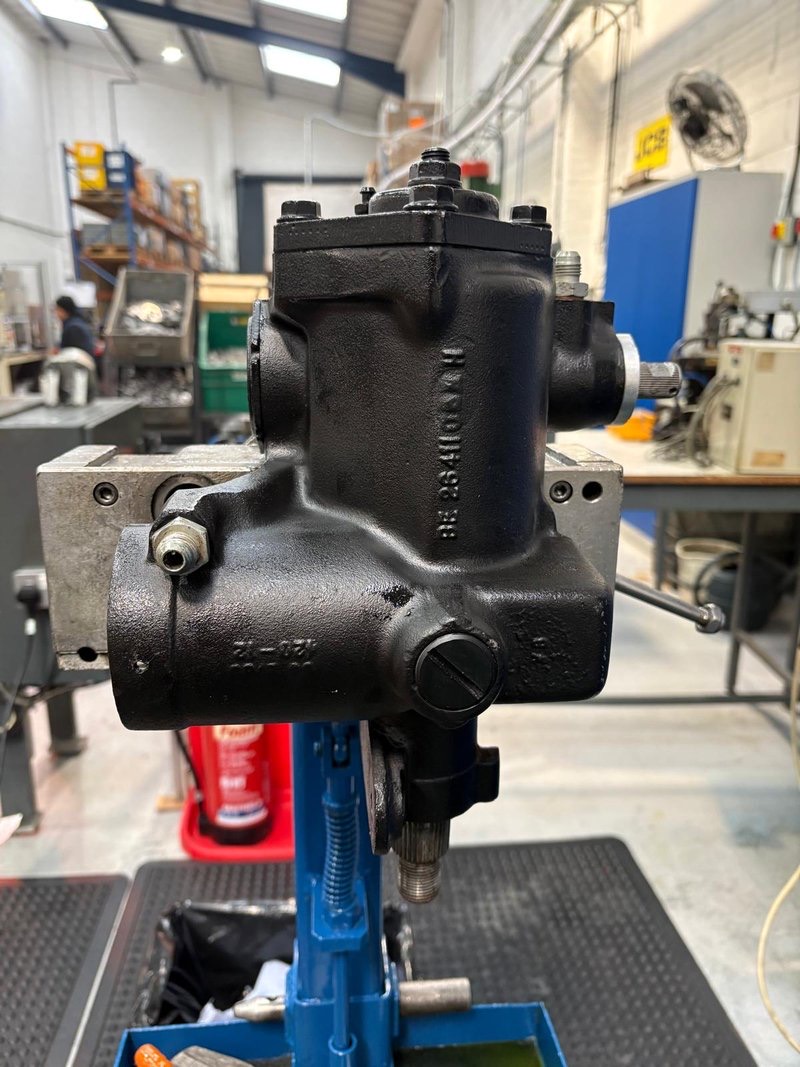

Stage one, as delivered
Original Adwest steering serial number present: Yes, recorded as 6K-*****.
Internal leak: None.
External leak: Yes, at the cover plate.
Trim value: 3, within tolerance, because the limit is 6.
The twelve assessments
| Component | Status | Recorded comment |
|---|---|---|

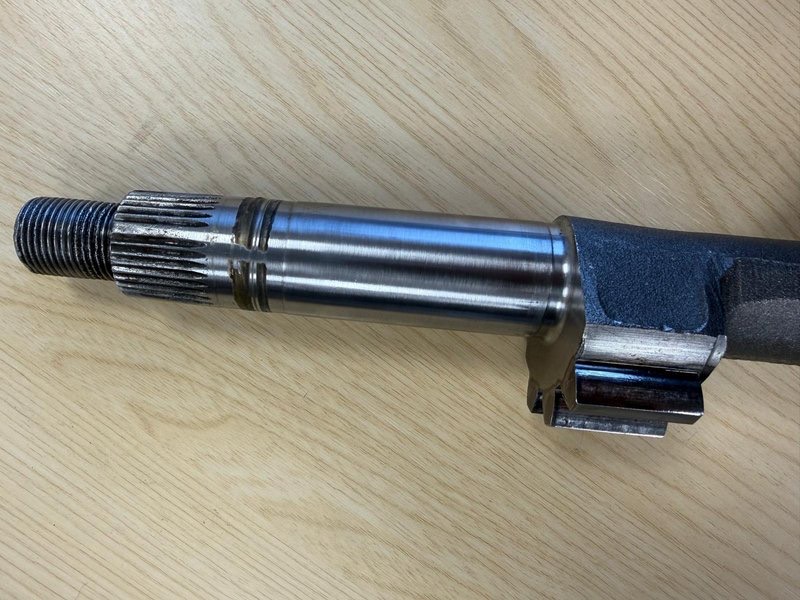

| Sector shaft | Red, not acceptable | Excess play, and the end of the shaft turned down with a substance attached |

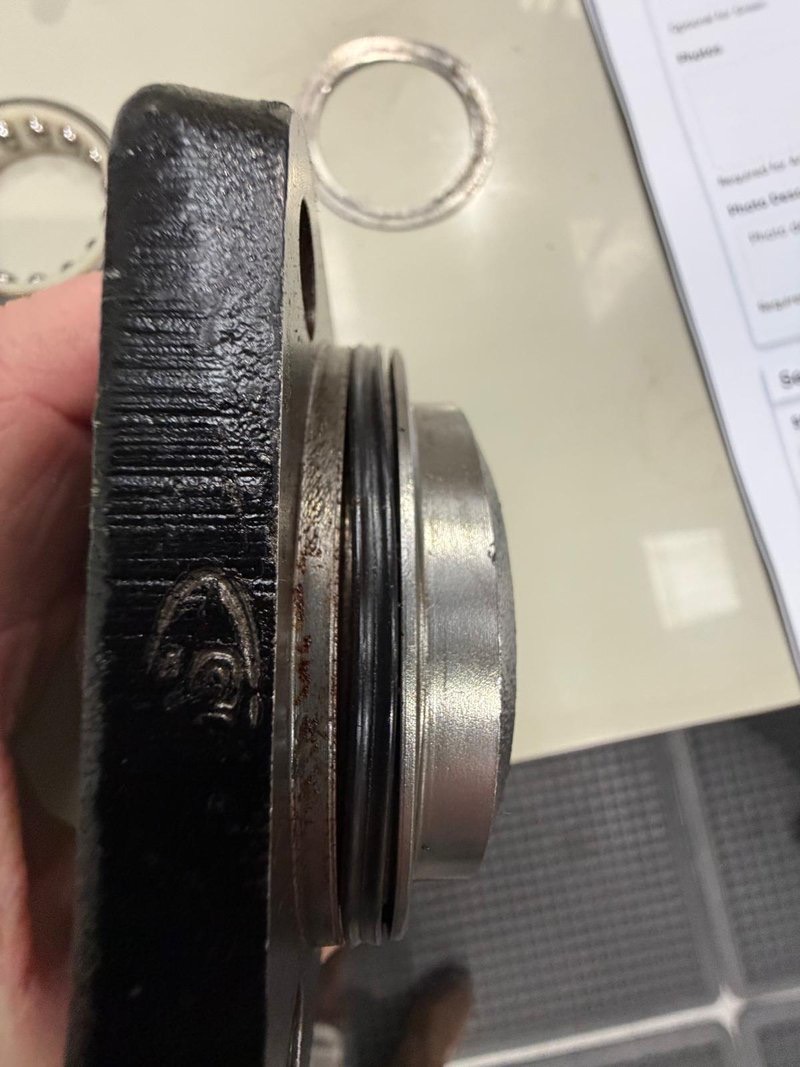

| Cover plate | Red, not acceptable | Incorrect seal fitted, not genuine, and leaking |
| Drop arm assembly | Red, not acceptable | Not supplied with one |
| Input seal | Amber, discuss with technical | Replace with new |
| Dirt seal | Amber, discuss with technical | Replace with new seal |
| Piston cap | Green | Good |
| Piston rack | Green | All good |
| Valve assembly | Green | Extensive wear but no impact damage |
| Rack pad and adjuster | Green | — |
| Valve bearings | Green | — |
| Box housing | Green | — |
| Transfer pipe | Green | — |
The two that were photographed
A Red or Amber result requires a photograph. These are the two from this record, and both match findings from our strip-down of a third-party remanufactured unit.
Engineering review
Overall assessment: requires new sector shaft and new seals kit, both since fitted.
Technical department sign-off required: Yes, signed off by a named reviewer on 2 March 2026.
New serial number issued: 12/25 - R******.
Why this matters
In an aftermarket crowded with claims
Visually similar products and unprovable claims are common. Adwest Verified shifts the fundamental question:
Traditional aftermarket question:
"Who says this is OE quality?"
Adwest Verified question:
"What evidence exists that this unit was built and tested to OE specification?"
That distinction is the foundation for long-term credibility in the aftermarket and future new production.
Adwest Verified begins with reconditioning
Every Adwest Verified record starts when a steering box enters our OE-spec reconditioning process. The engineering work generates the evidence.
Learn About Our Reconditioning ProcessVerifiable without relying on trust alone
Adwest Verified does not replace trust in Adwest. It removes the need to rely on trust alone.
